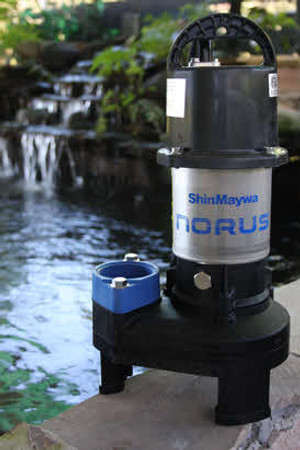

1 HP Shinmaywa Submersible Pump

1 HP Shinmaywa Submersible Pump

SKU:
50CR2.75S
$779.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

We use and abuse a lot of pumps on the farms. Reliability is very important to us. Saving electricity is too! After using these submersible pumps we realized that they fit out needs very well and have decided to offer them to our customers. These are perfect replacements for many ponds and great for new applications.

  • 2" Discharge
  • 1-1/4" Solids handling
  • 1-1/4" Solids handling
  • High Efficency Motor
  • Cast Alluminum Bearing Housing
  • No Corrosive Construction
  • 115 Volt/60Hz single phase, made in Japan
  • Anti Vibration Bearing Technology
  • Dual Mechanical Shaft Seals, Silicon Carbide Lower, Carbon Ceamic Upper
  • Seal Extender
  • 33' Power Cable
  • ETL Listed

CONSTRUCTION:

Flange Connection 2" NPT
Housing SS
Impeller FRP
Impeller Type Vortex
Volute FRP
Mechanical Seals Double CC?SC
Power Cord STW PVC
Fasteners SS
Shaft SS

Motor RPM

 3400
Bearings Double Ball Bearing
Insulation Class E

SPECIFICATIONS & PERFORMANCE 1 HP MODEL 50CR2.75S:

  • Volts 115/60Hz Single Phase
    Amps 10

    Flow Rates GPM/GPH @ ft of head

    Max Head for this model 48'
    Flow 5' 10' 15" 20' 25'
    GPM 113 101 91 81 68
    GPH 6780 6060 5460 4860 4080
